PRODUCT DESCRIPTION
Features:
– The output power is stable;
– Transmit power 4 gear switch: 25mW/100mW/400mW/600mW;
– Output 40 channels.
– Frequency lock fast, the boot does not interfere with companions;
– Built-in output power self-check function;
– Full format video format: NTSC /PAL;
– Wide input voltage range. low power consumption:
6V～36V

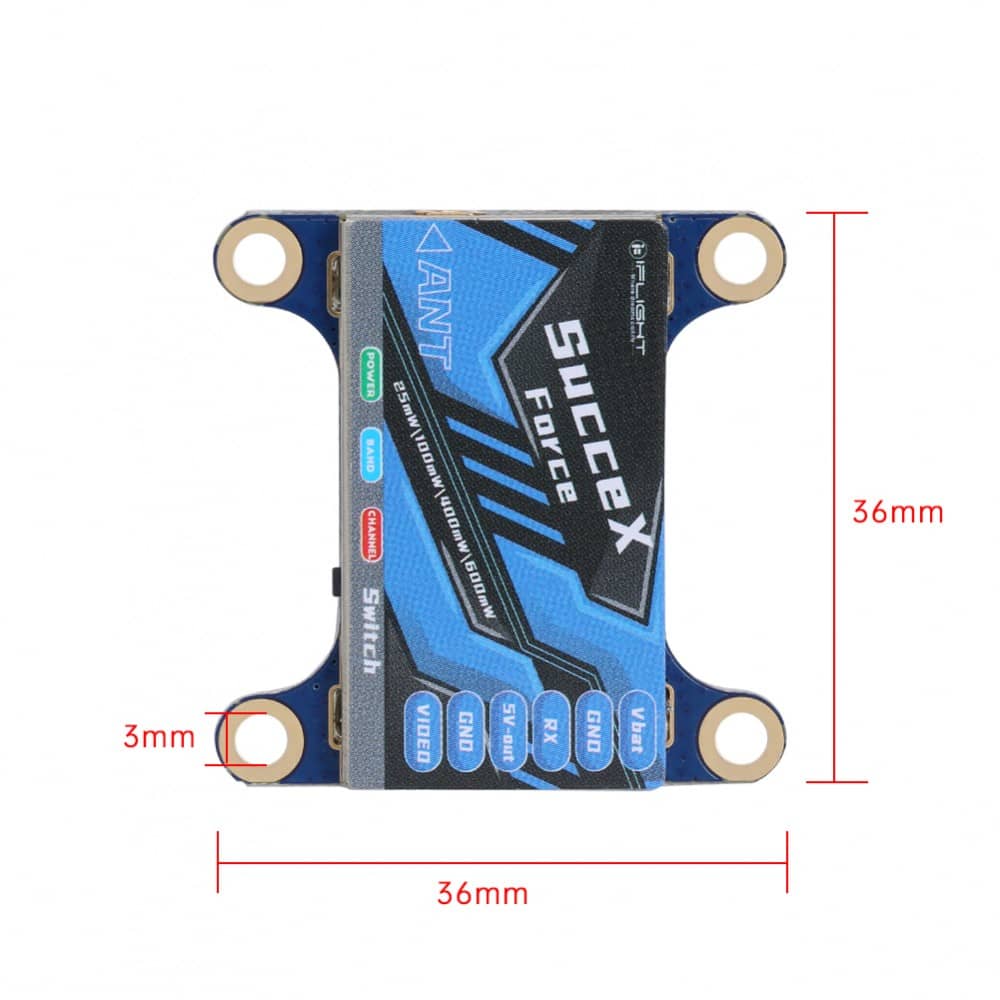

– Small size:36*36*3mm
– Mounting holes 4-M3

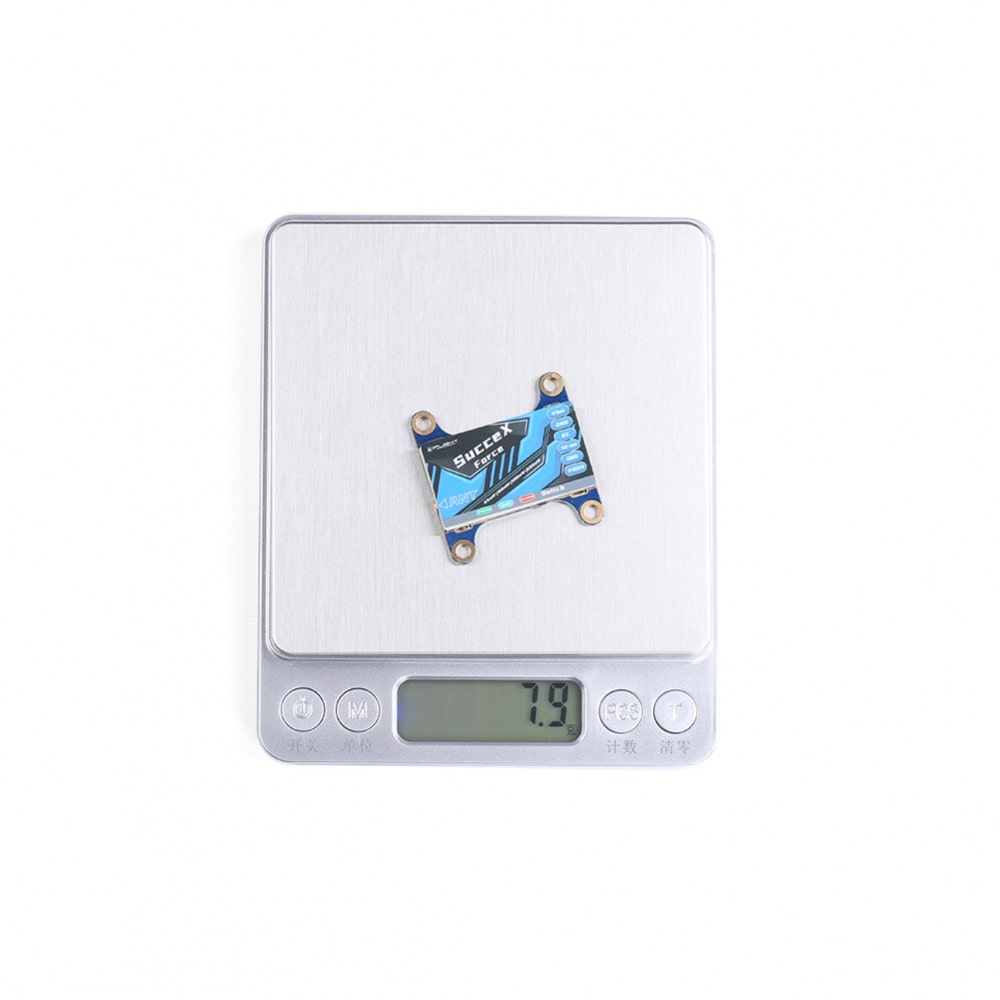

– Lightweight: 7.2g(excluding antenna)
Tips:
VTX is set to 25mW by default! Power levels above 25mW require a HAM license or have to be approved by local authorities! Please ensure you’re flying legal frequencies and use our prepared Betaflight VTX tables according to your region.
Specs:
– Item: SucceX-Force 600mW adjustable VTX
– Input voltage: 6-36V
– Output voltage/ Max current: 5V±0.5V 1A
– Channel: 40
– size:36*36*3mm
– PIT/25mW/100mW/400mW/600mW

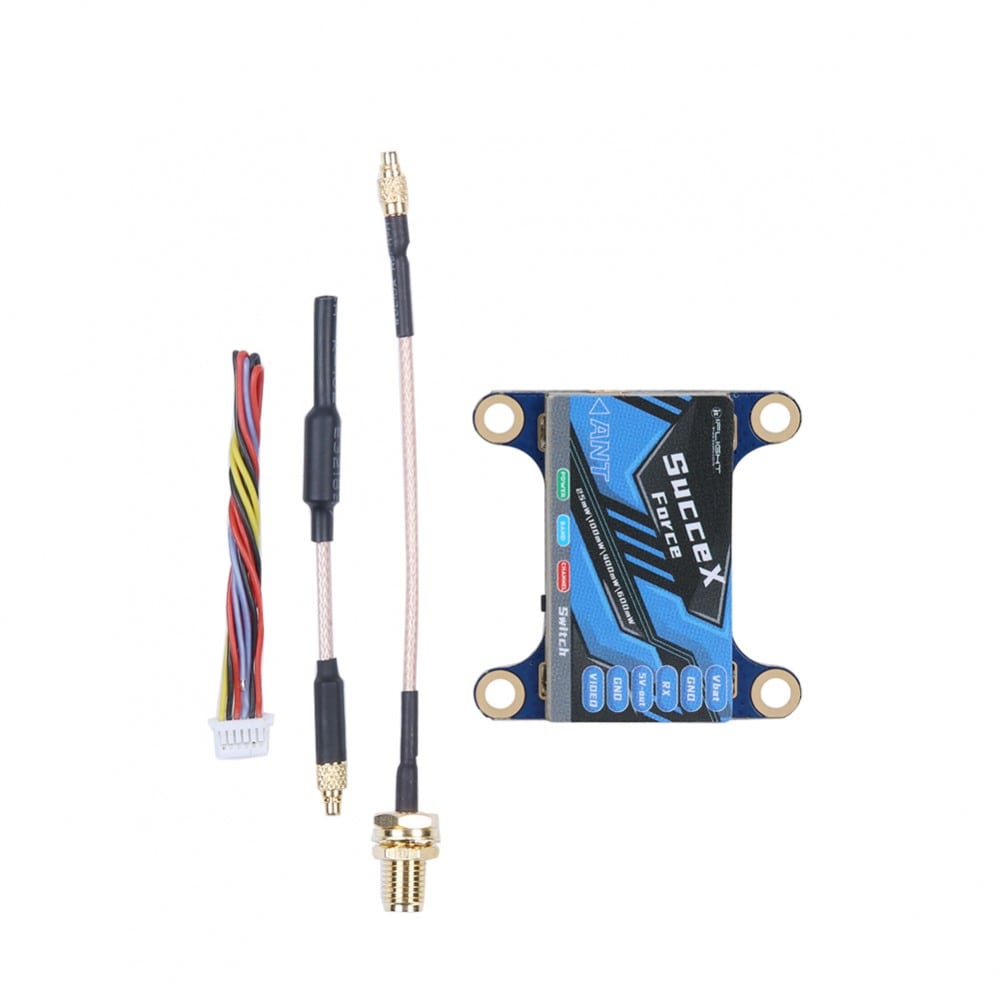

Package included:
– SucceX Force 600mW adjustable VTX x 1pc
– MMCX to SMA Female Adapter Cable 100mm x 1pc
– 5.8GHz MMCX straight antenna 65mm x 1pc

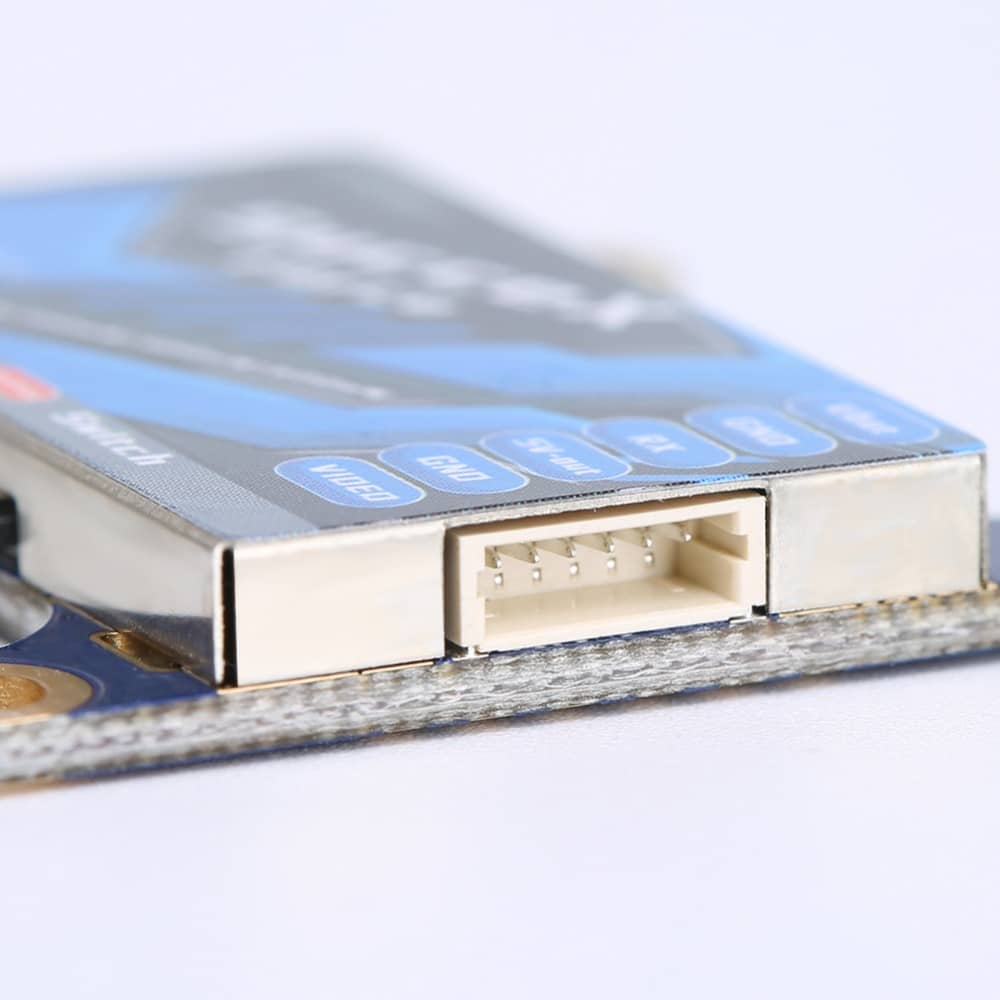

– SH1.0 6P cable 100mm x 1pc
